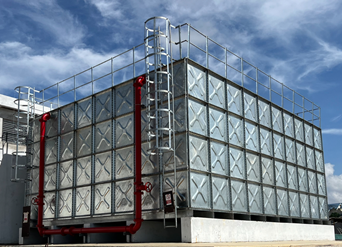

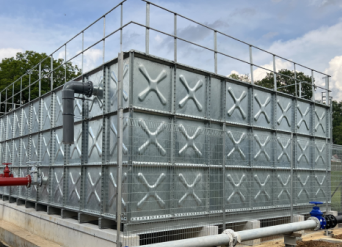

Hot dipped galvanised steel sectional water tank

Standard :

• Pressed steel sectional water tank constructed with hydraulically pressed flanged panels

Materials :

• The tank panel, stays and cleats are made of mild steel with hot dipped galvanised finishing

Flange of plates

• Tank panels pressed with a 90-degree panel flange to the face of the plate on four sides.

Bolts, Nuts and Washers :

• Hot dipped galvanised

Jointing Materials :

• Non toxic PVC foam to be used for all jointing between tank panel flange

Tank Cover :

• Panel type tank cover supported by trusses 600mm x 600mm square manhole and supplied as standard for each compartment

Water Level Indicator :

• Direct Reading visual tube type

Nozzels for Connection:

• Short pipe with flange for all pipe connections

Ladder :

• Internal and external H.D.G steel ladder, 300mm width.

Skid Base:

• Provided
